About Us

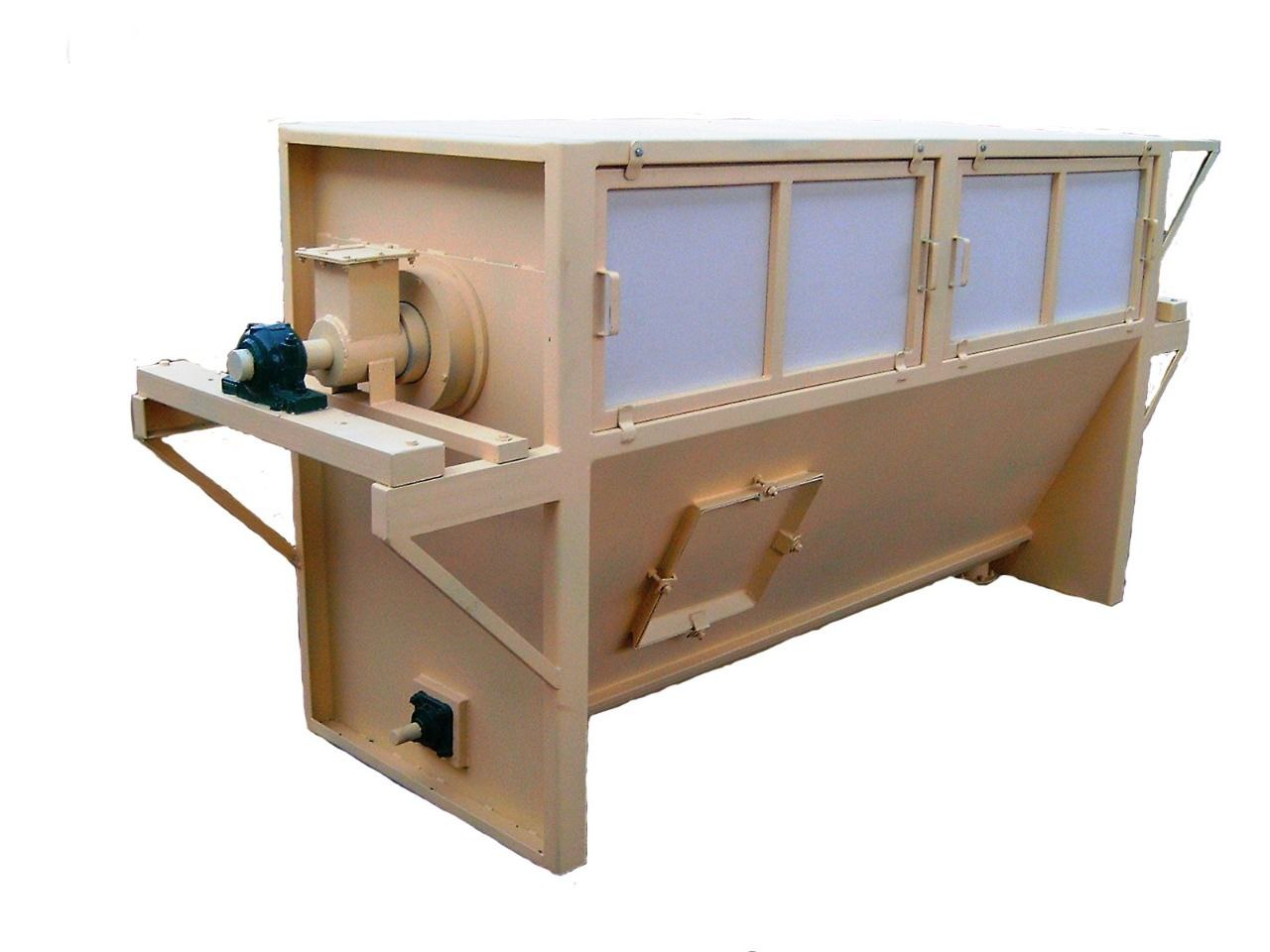

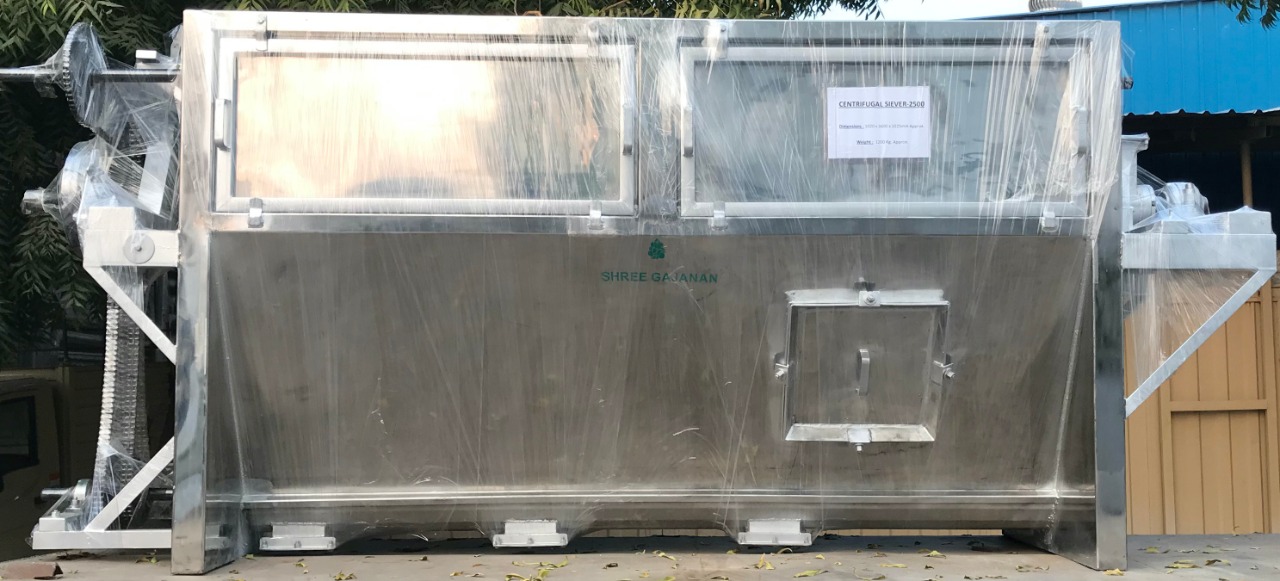

It is a anti-clock wise specifically developed "Machine for Fine Powder" screening jobs of
continuous type. A clock
wise rotating screen with simultaneously anti-clock wise rotating paddles inside which accelerates
material for faster screening operations. A brush is also provided for cleaning the surface and enabling
removal of chocking incidents. The centrifugal siever is designed to handle a wide variety of powdered
material like as
- Guar Gum Powder
- Gram Flour (Besan)
- Wheat Flour (Atta)
- Psyllium Husk Powder (Isabgol)
- Henna Powder (Mehandi)
- Cellulose
- Starch Derivatives
- Chemicals products
- Pigments
- Color
- Ink & Paints
Centrifugal sievers are primarily used to sieve over size out of product. Featuring high efficiency Separation and high capacity through Out-Put. The sievers have an easy clean design with partial disassembly without tools for access. Robust Construction with self-aligning inspection doors to ensure dust tight sealing. Screen can easily and quickly be replaced.
Application In:
Centrifugal Sievers are used in controlled sieving of powder and granular products for classification, removal of lumps and foreign material.
The Centrifugal Siever has its proven
application in the industries like:
Guar Gum Powder,
Psyllium Husk Powder,
Henna Mehandi,
Cellulose,
Starch Derivatives,
Etc. and Many more…………
It is used to remove oversized material from grinded food products and cereals, chemicals, feed and
minerals. They are sieved in Centrifugal Siever for uniform sieving at a constant feed rate.
Working Principle

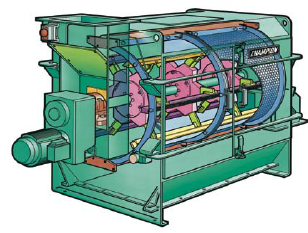

The product is fed into the siever trough inlet with the feed screw providing uniform feeding into the sieving chamber, where the product is transported along the sieving surface by rotating paddles or brushes, which distributes the product evenly on the screen. Feeding must be continuous and uniform for optimum performance. The finest material will exit via the central outlet connectable or discharge chute to any piping system. The material that does not pass through the screen will be discharged through the side outlet or oversize chute.

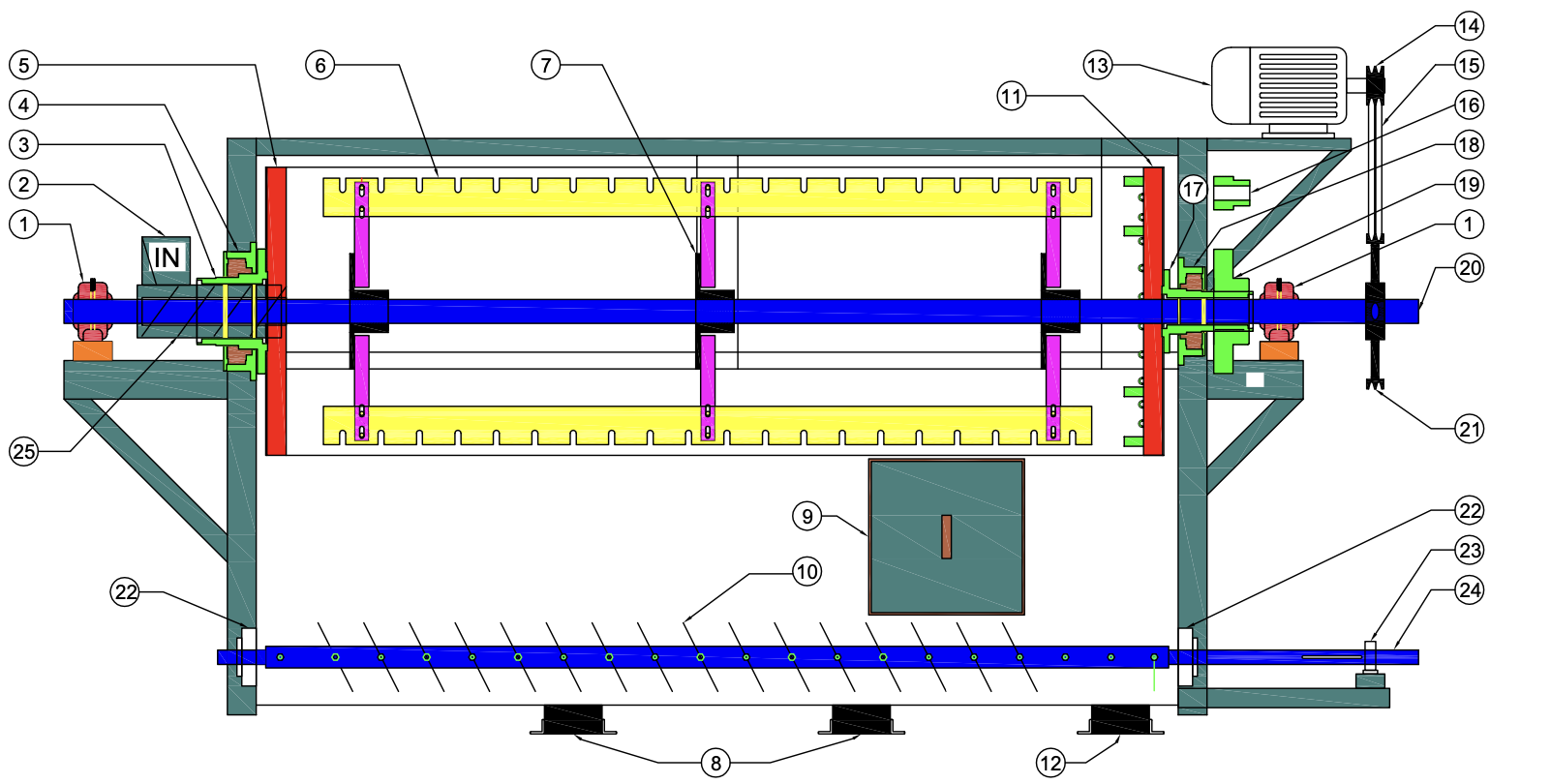

Centrifugal Siever construction comprises a clock wise rotatory horizontal cylindrical sieve. An internal anti-clock wise rotating paddles fitted with shaft along the sieve length. In operation material to be sifted is feed into the siever by inlet feed box. The Product is then uniformly feed into the clock wise rotatory horizontal cylindrical sieve by means of the feeding hopper with conveyor. The centrifugally force, forces the finest material against and through the screen. Soft whilst oversize particles pass out at the end of the screen. Adjustable weirs control the flow of oversize and retention time in the siever.
Features
- Designed and manufactured with precision technology.
- High Sieving performance.
- Low power consumption 3 HP only.
- Low Noise operation.
- Ideal machine for fine powder sieving purpose.
- Totally enclosed dust proof rotary sieving machine works on the principle of centrifugal action.
- Thorough sieving and excellent grading design to suit nylon sieves of different mesh sizes.
- Free of vibrations.
- Available in Mild Steel & Stainless Steel-304 Grade.
